Cole Hersee Battery Master Switch 75910BX DPST On/Off

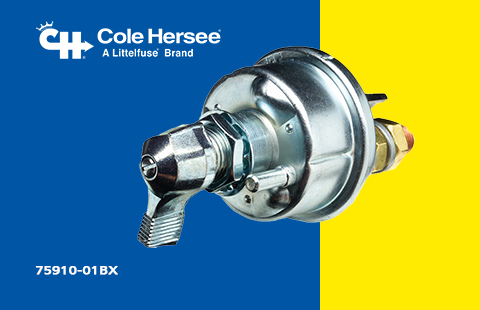

This is the Cole Hersee 75910-01BX DPST Battery Master Switch, with 1000 amp intermittent, 125 amp continuous capacity. This is Australia’s most reliable Battery Master Switch and was developed by Cole Hersee in conjunction with BAE and mining giant BHP Billiton, to service a specific requirement. The Cole Hersee 75910 is now spec’d in for all vehicles entering a BHP Billiton mine site.

Available as a single unit or in a packet of 10 (by 10, get the 10th free.)

• Battery Master Switch 75910 DPST On/Off

• A genuine Cole Hersee 75910BX switch with “Cole Hersee” stamped into the casing

• ‘Complies With Australian Mining Regulations Standards’

• Disconnects the battery and the alternator or generator field

• DPST, Silver contacts, Strong steel-plated casing

• Chrome-plated die-cast alloy lever

• Brass mounting stem, studs and indexing pin

• O-ring sealed for weather resistance

• Indexing pin aligns switch and prevents rotation

• 2 x Field stud 10-32, 2 x Battery stud 3/8”-24

• Mounting stem 3/4”-24 thread, L 13mm

• Suits panel thickness to 6.5mm

• Operating temperature range: -40C to +85C

• Voltage 6V-36V Multivoltage

• Amperage 1000A Intermittent, 125A Continuous, Small: 20A Continuous

• Dimensions H 110 x D 67

• Configuration DPST

• Modes On/Off

• Application Heavy Duty, Mining
